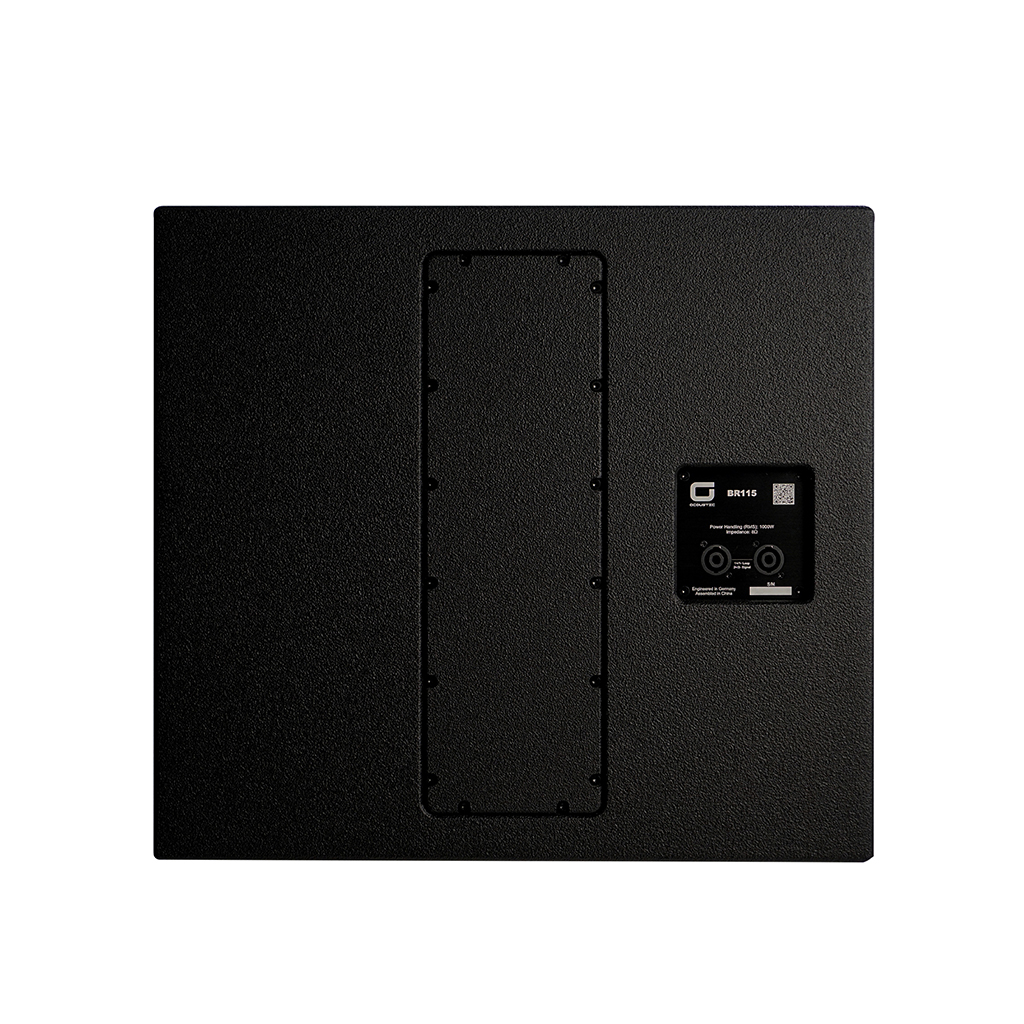

The BR115 is a Subwoofer in Bass Reflex Configuration. It contains one 15“ Cone driver with 4″ Voicecoil and Ferrite Magnet. It can be powered with one amplifier channel from BR115A and has the same shape for easy stackup.
Large Ventilation Ports ensure high output and low noise.
The BR115 has 4 Rubber Feet in Symmetrical Alignment which allows stable Stacking also in Cardioid Applications. A M20 polemount allows combined applications with G-ACOUSTIC Mid-High Speakers.
| Transducers | LF: 1x 15” , 4" Voicecoil, Bassreflex Loaded |
|---|---|
| Frequency Range (-10dB) | 36Hz – 300Hz |
| Sensitivity (1W/1m) | 97dB |
| Power Handling (RMS) | 1000W |
| Maximum SPL | 131dB |
| Nominal Impedance | 8Ω |
| Coverage (-6dB) | omnidirectional |
| Dimensions (W x D x H) | 550mm x 620mm x 500mm |
| Weight | 39kg |
