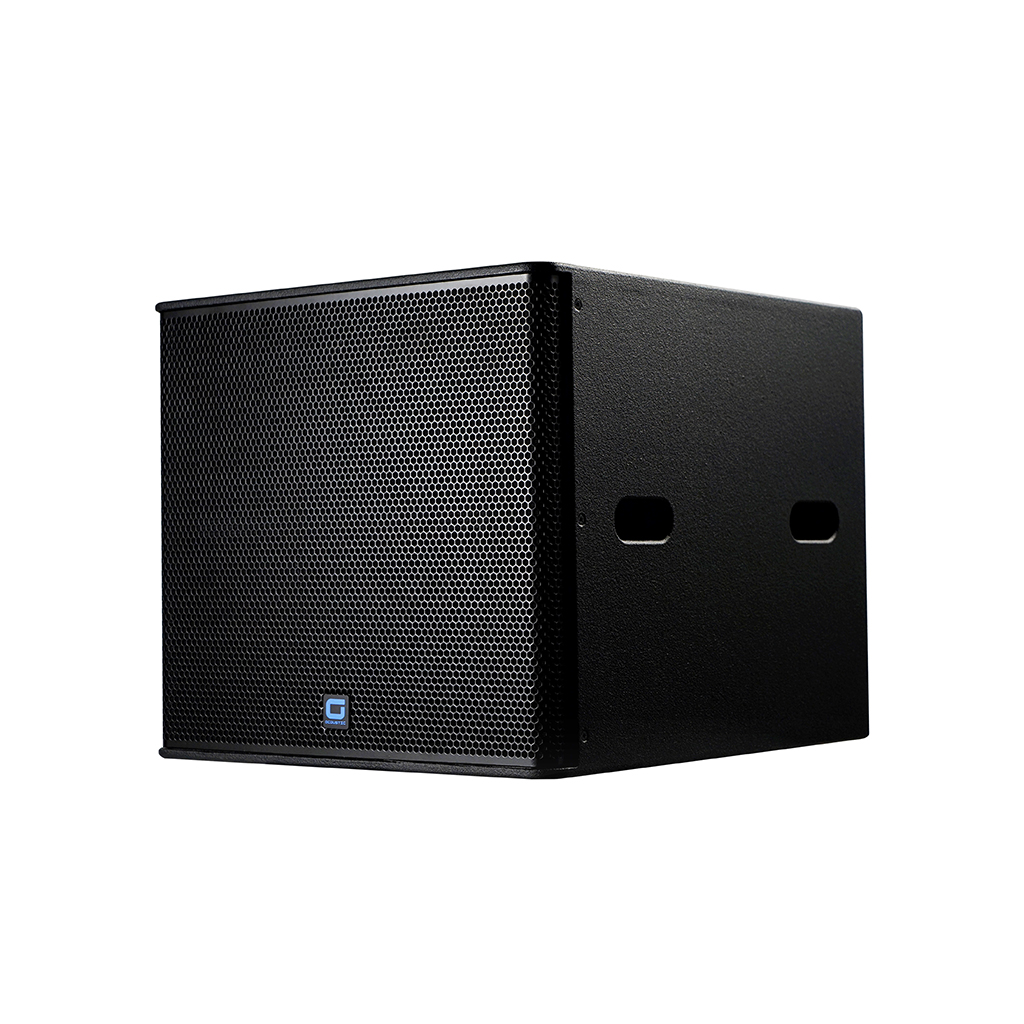

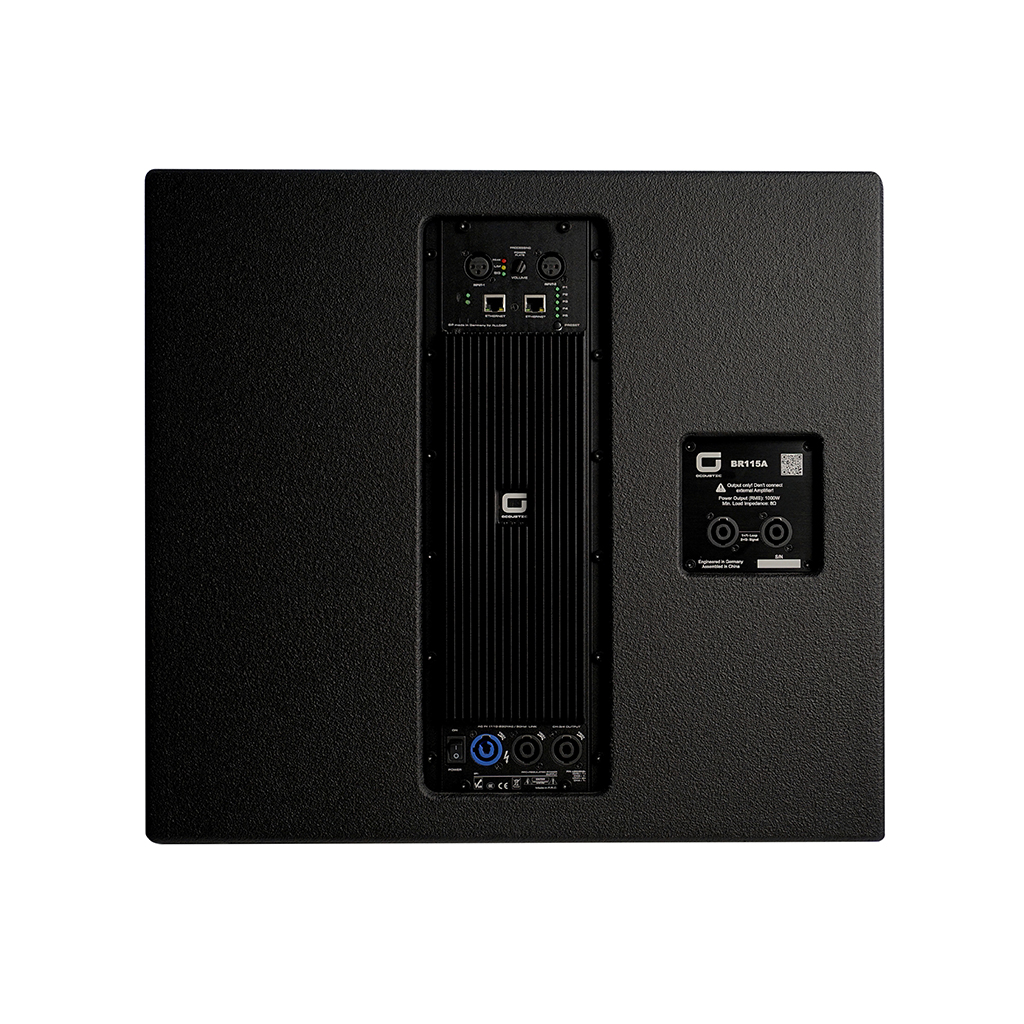

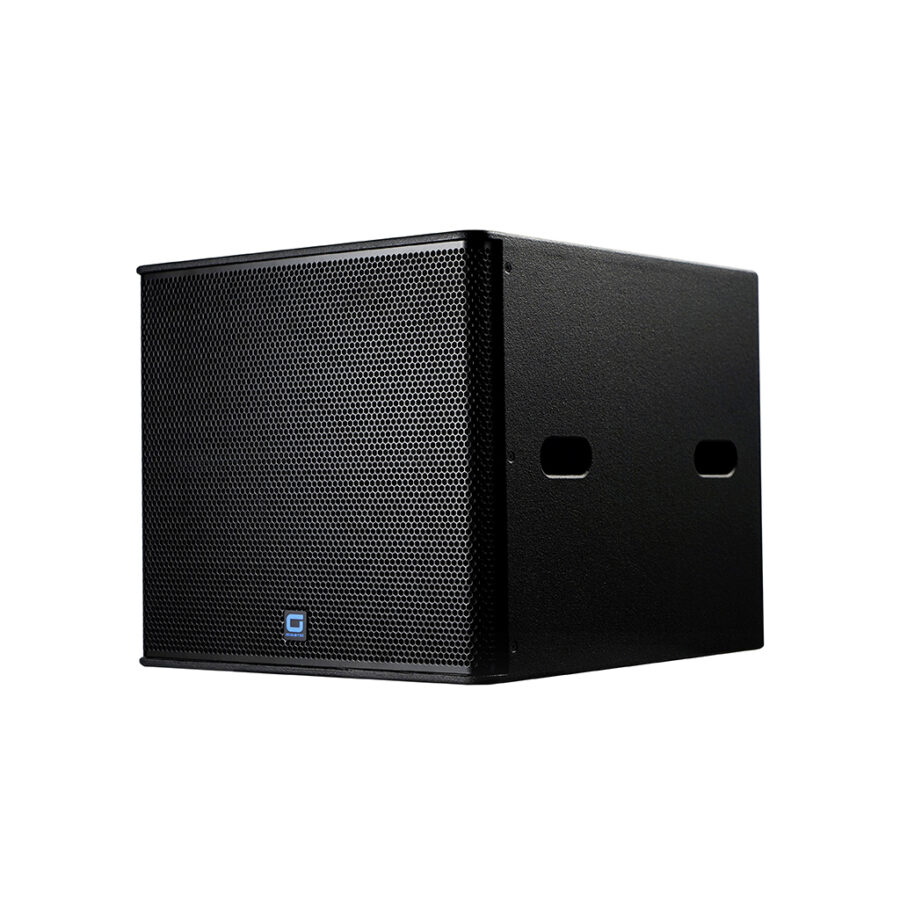

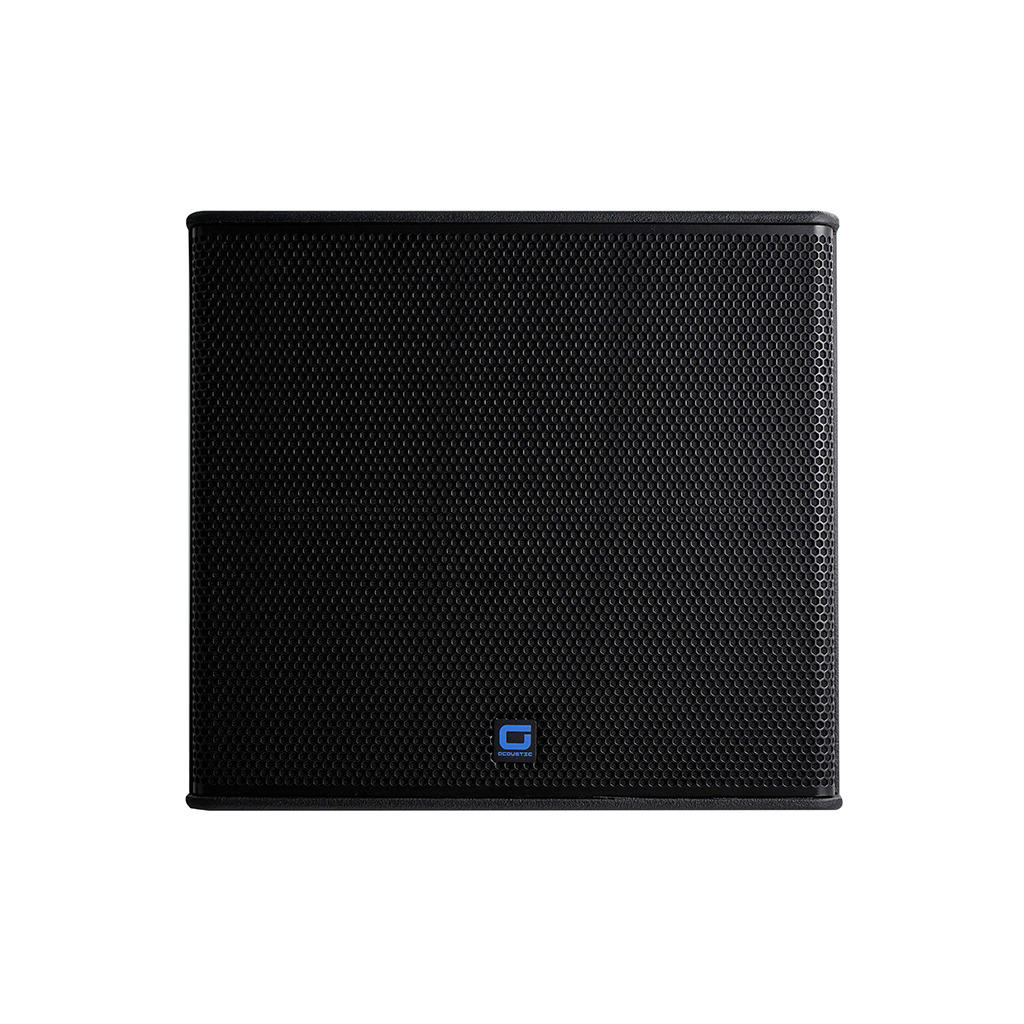

The BR115A is a Self-Powered Modular Subwoofer in Bass Reflex Configuration. It contains one 15“ Cone driver with 4″ Voicecoil and Ferrite Magnet. A built-in 4-channel Amplifier Module with a total System power of 4400W together with a High-Performance DSP allows various System configurations with G-ACOUSTIC products.
Large Ventilation Ports ensure high output and low noise.
The BR115A has 4 Rubber Feet in Symmetrical Alignment which allows stable Stacking also in Cardioid Applications. A M20 polemount allows combined applications with G-ACOUSTIC Mid-High Speakers.
| Transducers | LF: 1x 15” , 4" Voicecoil, Bassreflex Loaded |
|---|---|
| Frequency Range (-10dB) | 36Hz – 300Hz |
| Sensitivity (1W/1m) | 97dB |
| Power Handling (RMS) | Self-Powered, DSP-Amplifier Module with 4x1100W@4Ω |
| Maximum SPL | 131dB |
| Nominal Impedance | Self-Powered |
| Coverage (-6dB) | omnidirectional |
| Dimensions (W x D x H) | 550mm x 620mm x 500mm |
| Weight | 41kg |
