The K12 is a professional 12” loudspeaker designed for Multifunctional Applications. It is arranged as 2-way configuration with bass reflex loading and bassreflex ports at backside. The cabinet consists of a 12” driver with 76mm (3”) voicecoil and ferrite magnet as low frequency transducer together with a 46mm (1.75”) high frequency compression driver with 1.0“ exit mounted on a 60° x 40° constant directivity horn.

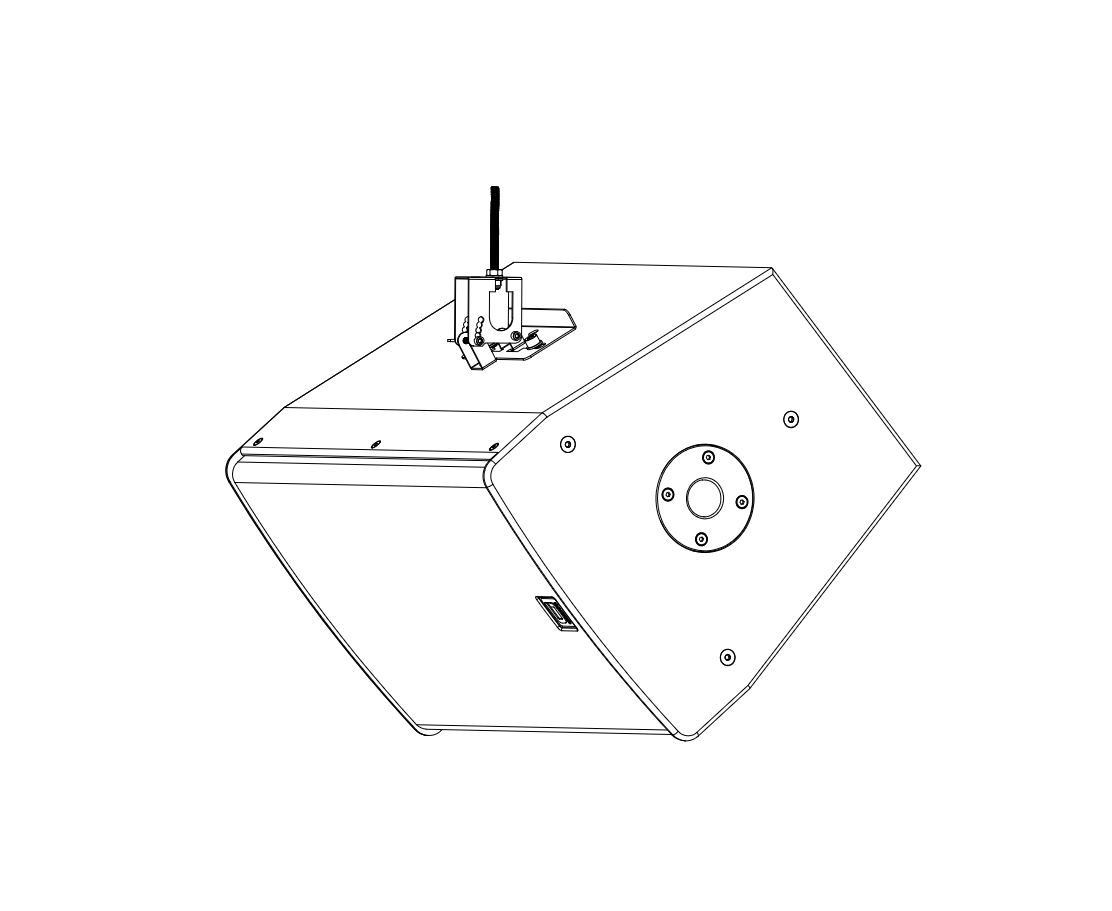

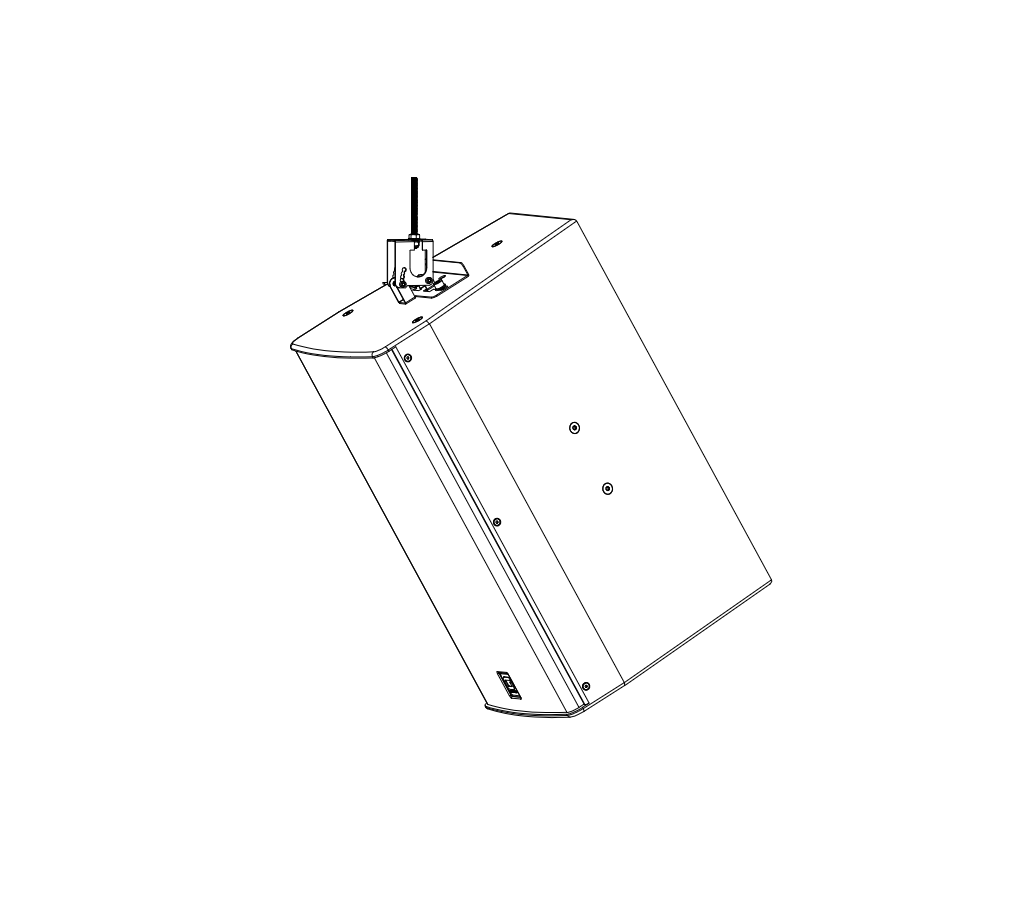

For rigging and mounting are various M8 points available in 100mm distance to use standard mounting accessories for ceiling, wall and standing application.
The K12 can be applied together with any G-ACOUSTIC subwoofer to increase output and low frequency extension.
| Power RMS | 500W |
|---|---|
| Frequency Response (±4dB) | 49Hz-19kHz |
| Sensitivity (1W/1m) | 97dB |
| Impedance | 8Ω |
| Dispersion (HxV) | 60° x 40° |
| Input Mode | 2x SPEAKON NL-4 |
| Rigging and Hanging | M8 rigging points |
| Dimensions (DxWxH) | 380mm x 350mm x 605mm |
| Color | black |
| Weight | 21kg |
