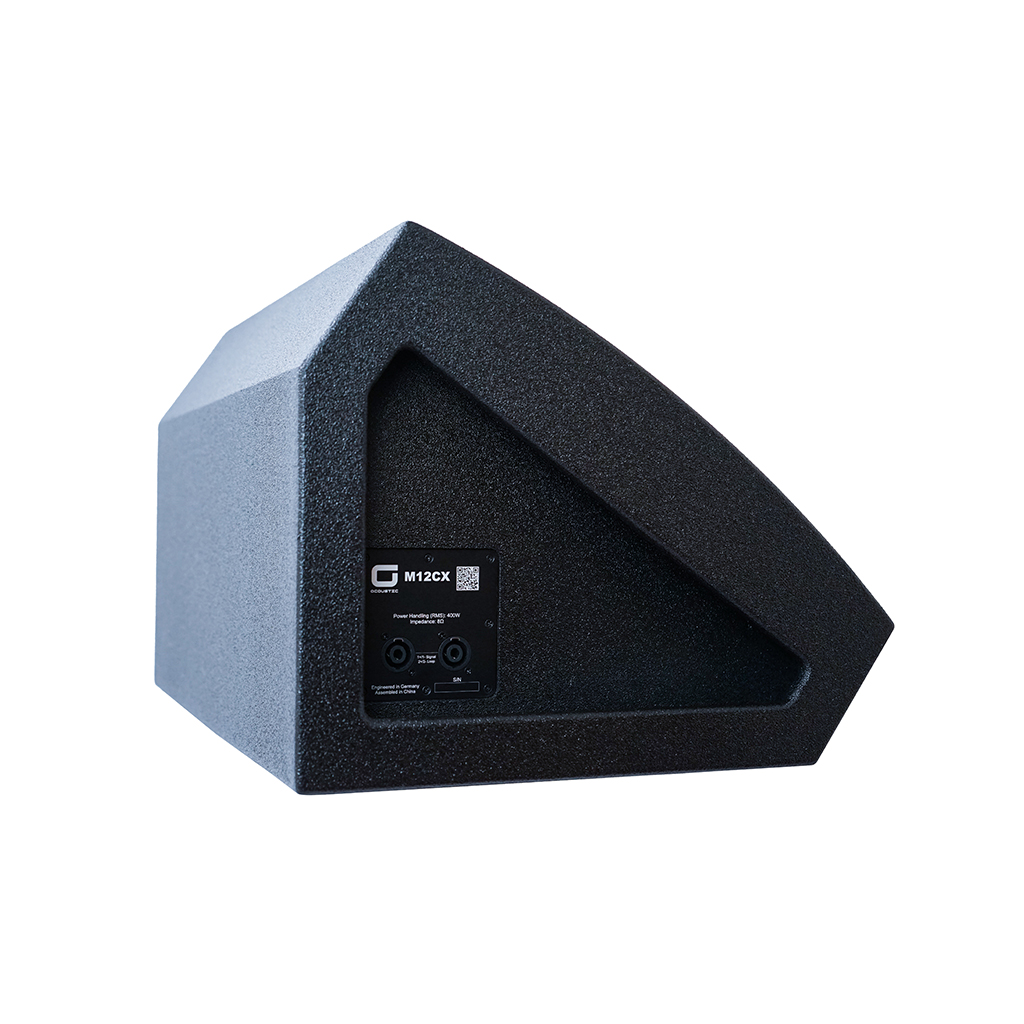

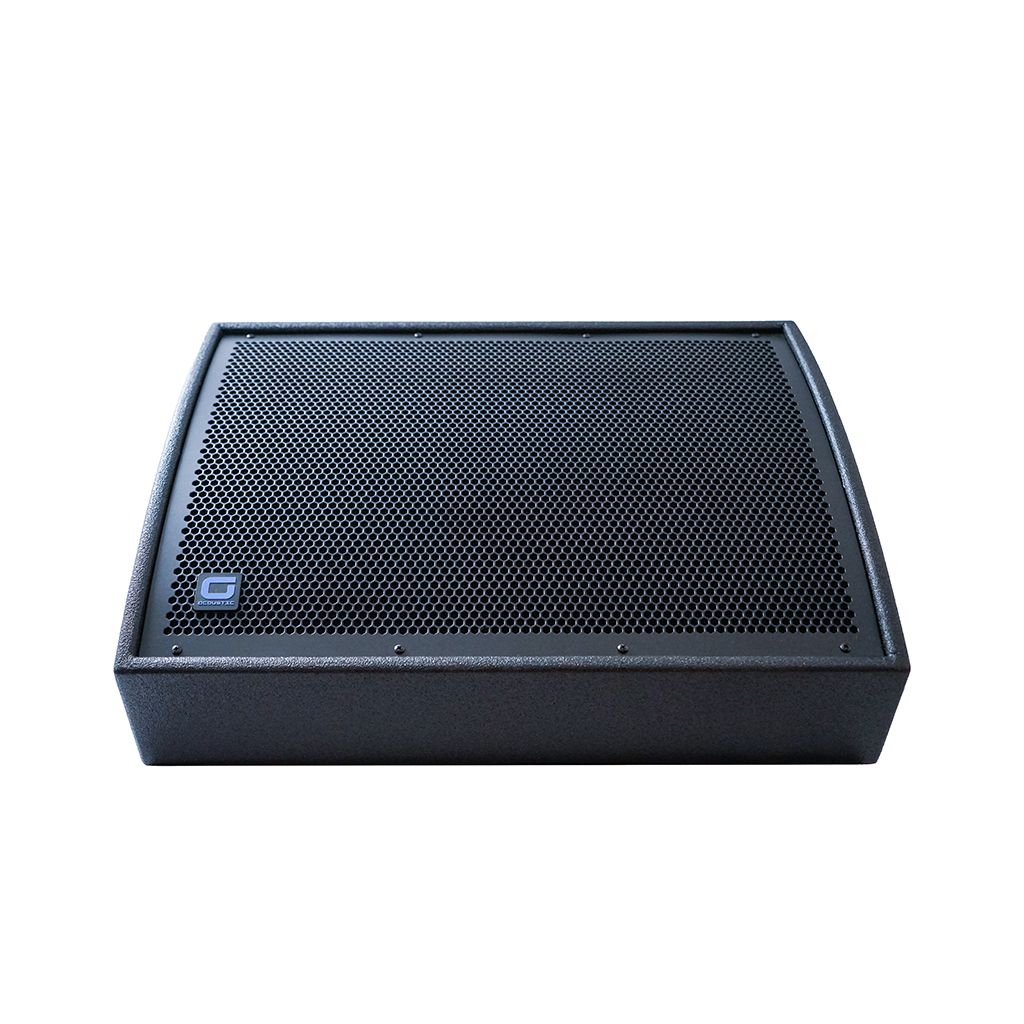

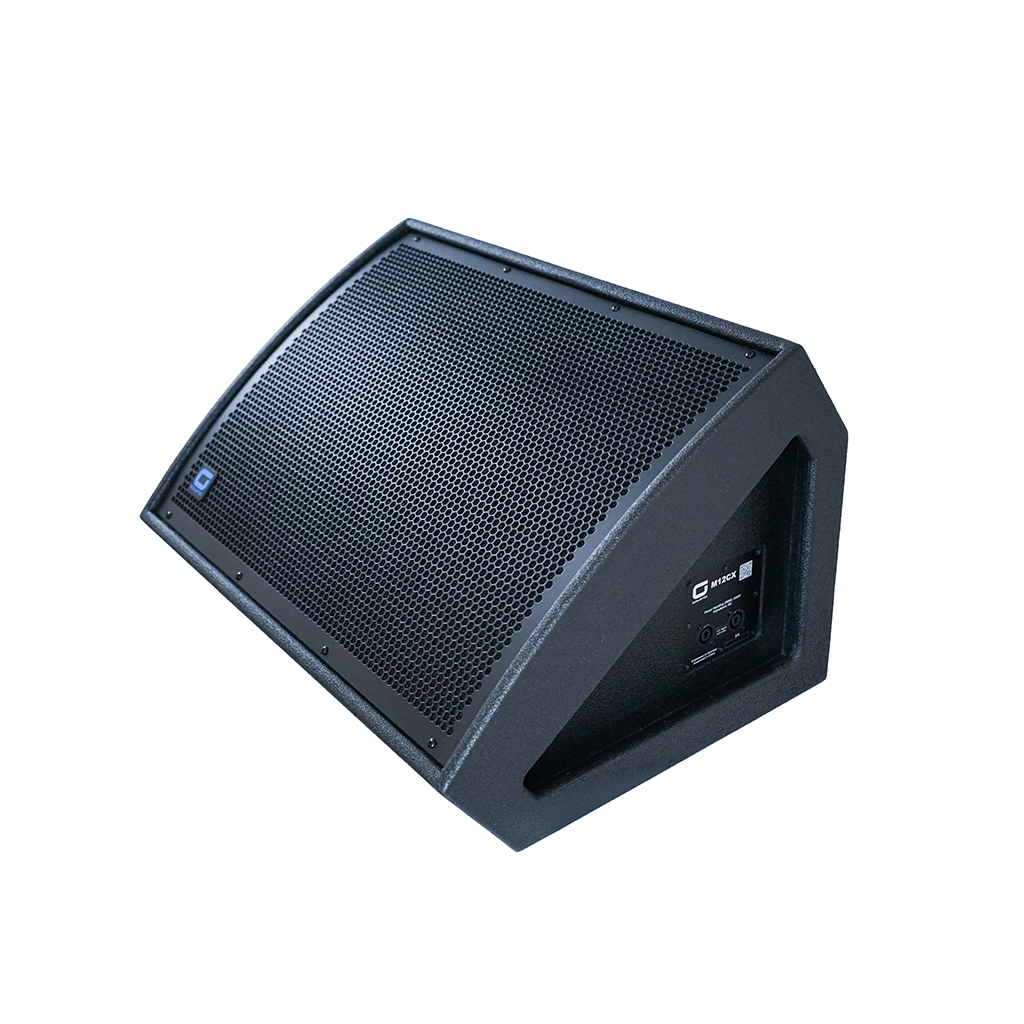

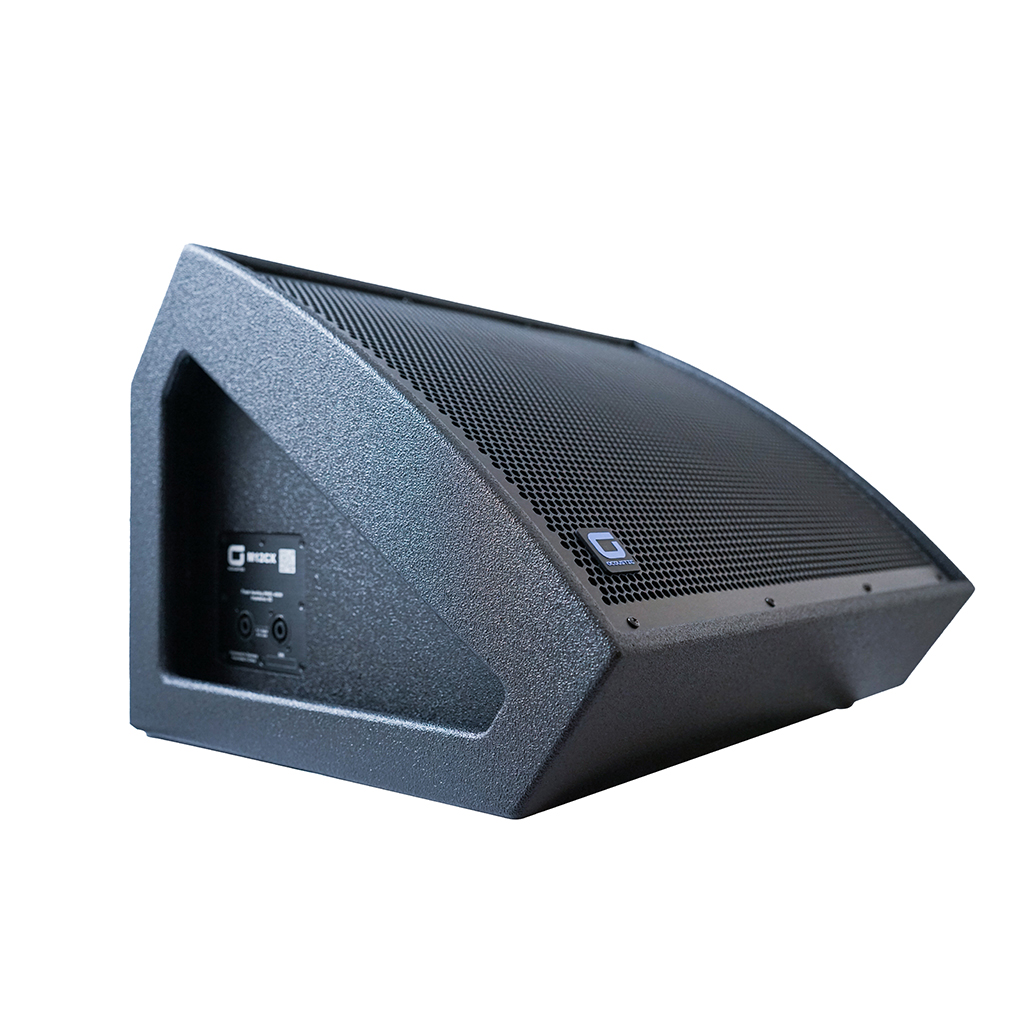

The M12CX is a professional 12” stage monitor, arranged as coaxial with bass reflex loading. The cabinet consists of a 12” driver with 76mm (3”) voicecoil and as low frequency transducer together with a 75mm (3”) high frequency compression driver with 1.4“ exit coaxial mounted.
The M12CX has an optimized front angle for perfect listening and a low profile shape. 2 speaker panels allow clean and easy wiring on stage. The M12CX can be applied together with 18“ G-ACOUSTIC subwoofers to increase output and low frequency extension.
| Transducers | LF: 1x 12” , Bassreflex Loaded |
|---|---|
| Frequency Range (-10dB) | 47Hz – 18kHz |
| Sensitivity (1W/1m) | 97dB |
| Power Handling (RMS) | 400W |
| Maximum SPL | 135dB |
| Nominal Impedance | 8Ω |
| Coverage (-6dB) | 70° conical |
| Dimensions (W x D x H) | 620mm x 445mm x 360mm |
| Weight | 18kg |
