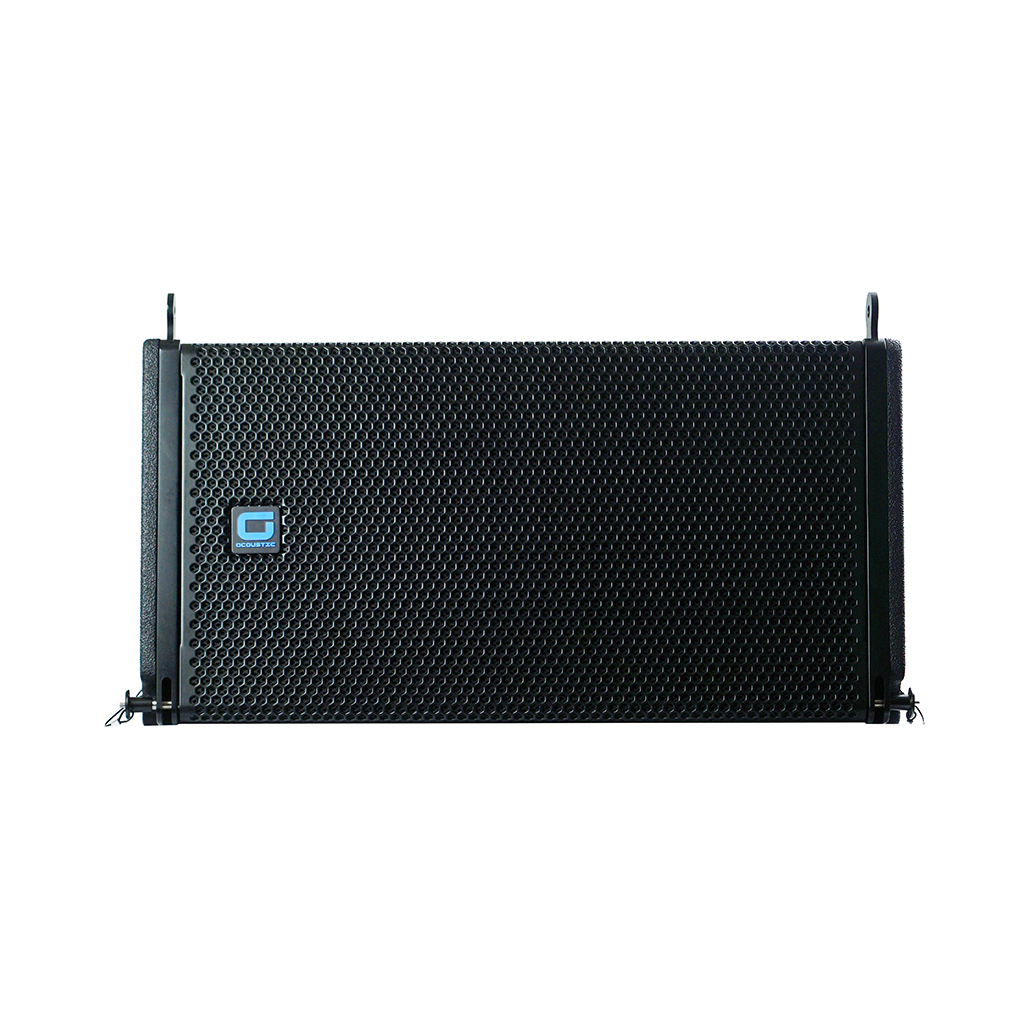

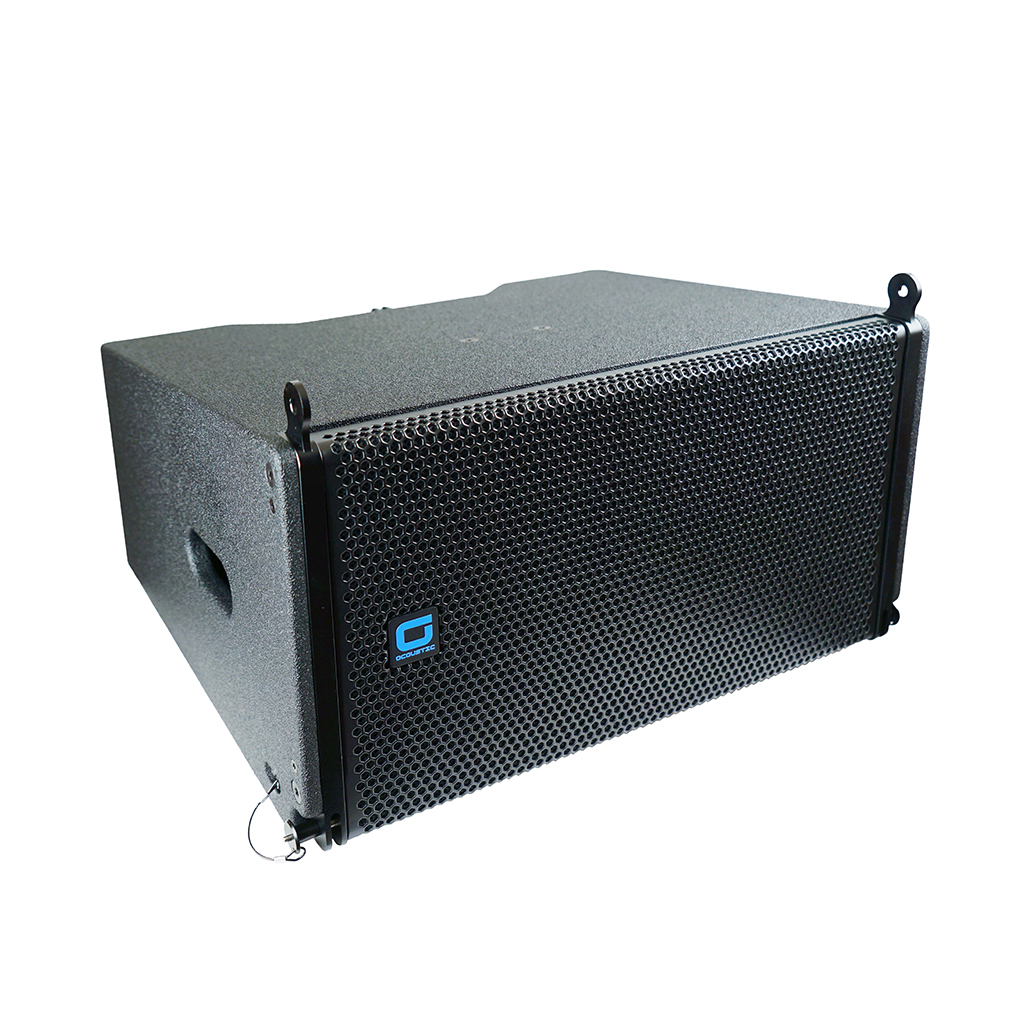

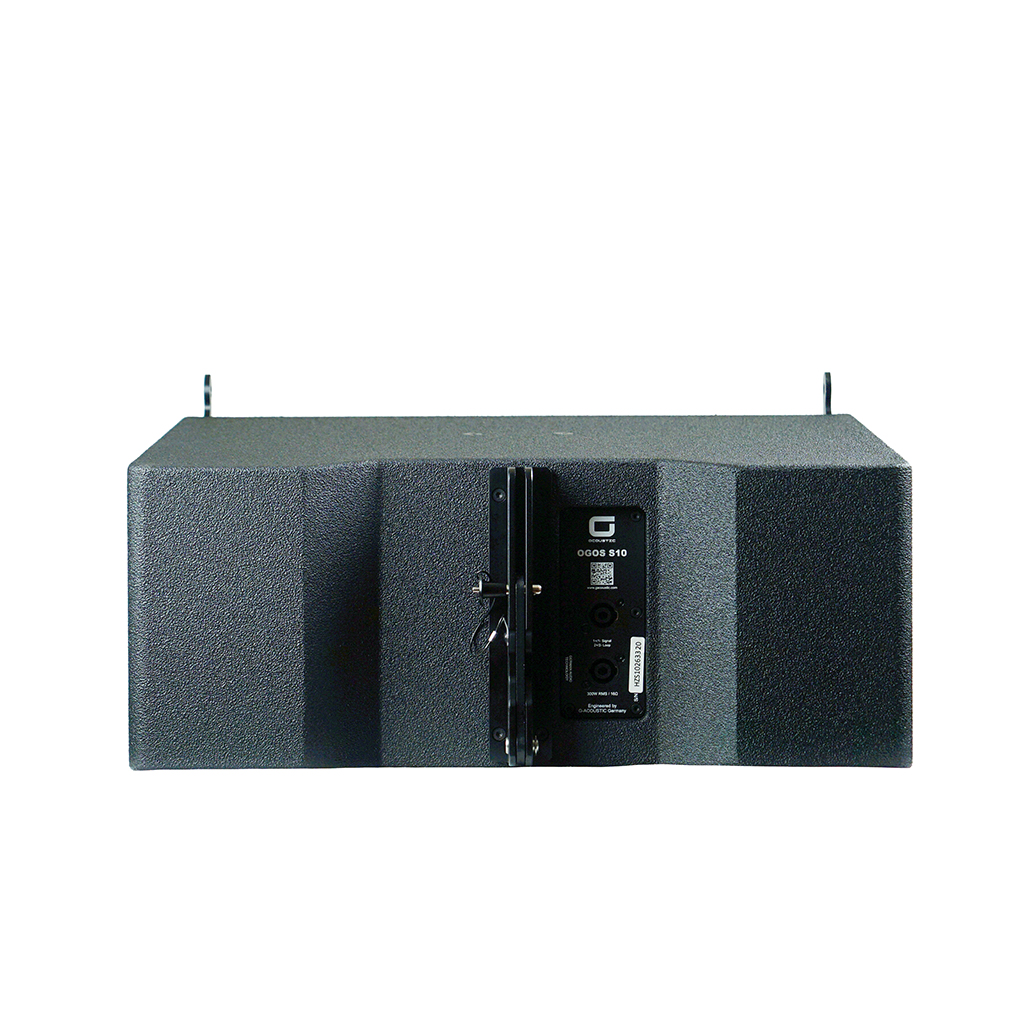

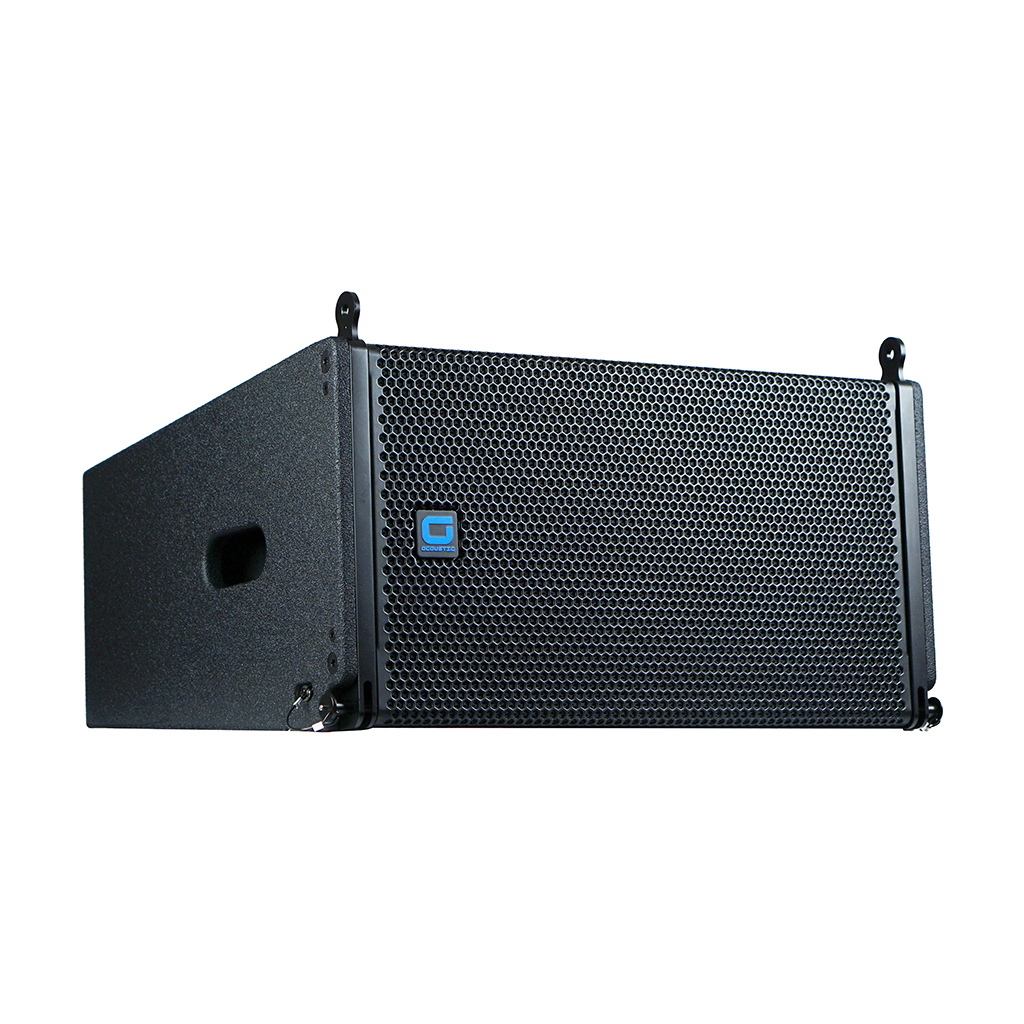

The OGOS S10 is a compact 2-way line source speaker. It contains a 10“ high performance driver with 2.5″ voicecoil and one 3″ compression driver with 1.4″ exit, mounted on a linearray waveguide with constant coverage Horn.
For convenient and safe stacking (up to 4 cabinets) and polemount use (up to 2 cabinets) is a mounting frame with M20 adapter available.
For bass extensions it is recommended to use the BR115 or BR115A, which share the same width and therefore able to be combined with the OGOS S10 in homogen and compact combinations.
| Transducers | LF: 1x 10” , Bassreflex Loaded |
|---|---|
| Frequency Range (-10dB) | 50Hz-18kHz |
| Sensitivity (1W/1m) | 96dB |
| Power Handling (RMS) | 300W |
| Maximum SPL | 135dB |
| Nominal Impedance | 16Ω |
| Coverage (-6dB) | 90° (H) x 10° (V) |
| Dimensions (W x D x H) | 535mm x 370mm x 280mm |
| Weight | 16kg |
