The QUBE10 is a professional 10” loudspeaker,
arranged as coaxial configuration with bass reflex
loading. The cabinet consists of a 10” driver with
76mm (3”) voicecoil and ferrite magnet as low
frequency transducer together with a 47mm (1.75”)
coaxial mounted high frequency compression
driver sharing the same magnet.

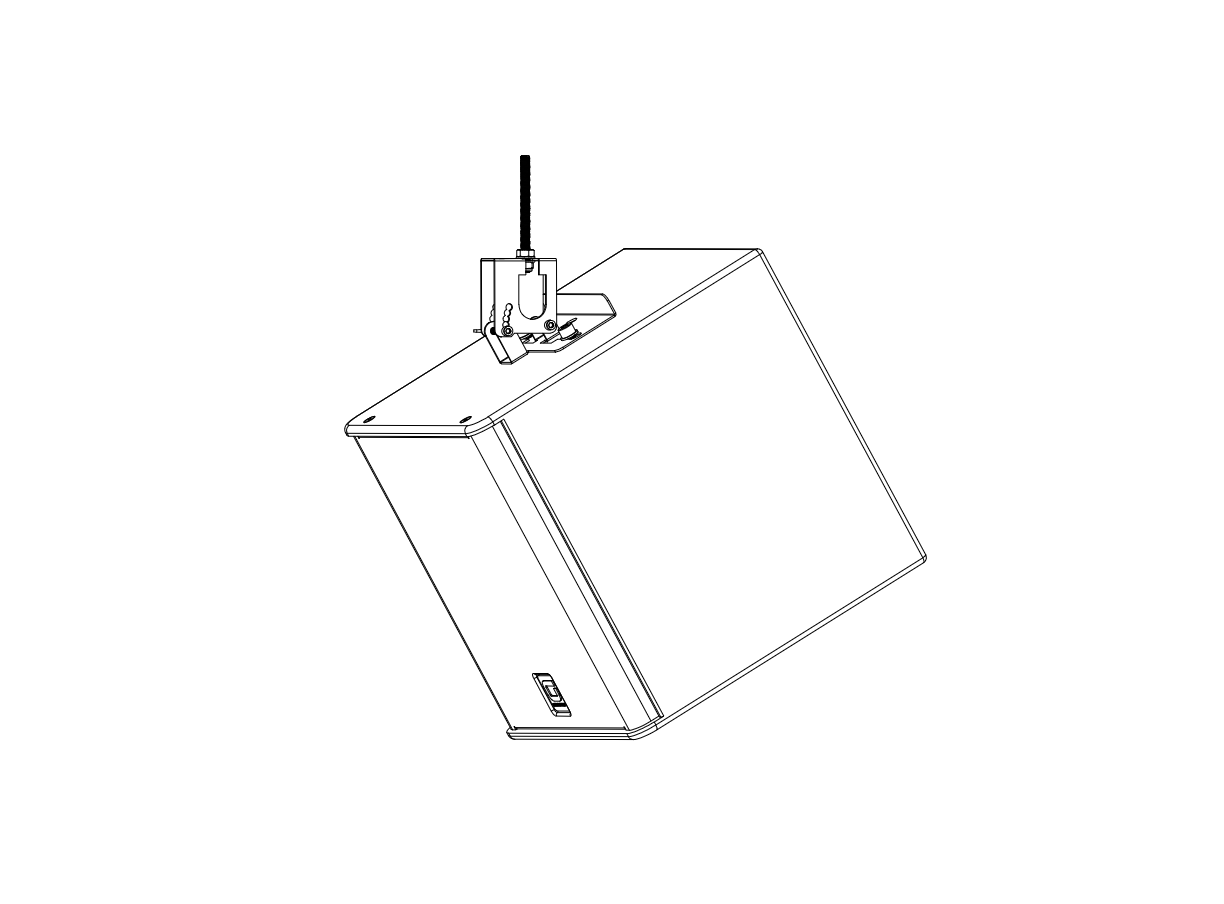

For rigging and mounting are various M8 points
available, paired in 100mm distance to use
standard mounting accessories for ceiling, wall and
standing application.
The QUBE10 can be applied together with any G-
ACOUSTIC subwoofer to increase output and low
frequency extension.
| Transducers | LF: 1x 10” Cone Driver with 3" Voicecoil, Bassreflex Loaded |
|---|---|
| Frequency Range (-10dB) | 47Hz – 20kHz |
| Sensitivity (1W/1m) | 96dB |
| Power Handling (RMS) | 400W |
| Nominal Impedance | 8Ω |
| Coverage (-6dB) | 70° conical |
| Dimensions (W x D xH) | 310mm x 310mm x 310mm |
| Weight | 15kg |
